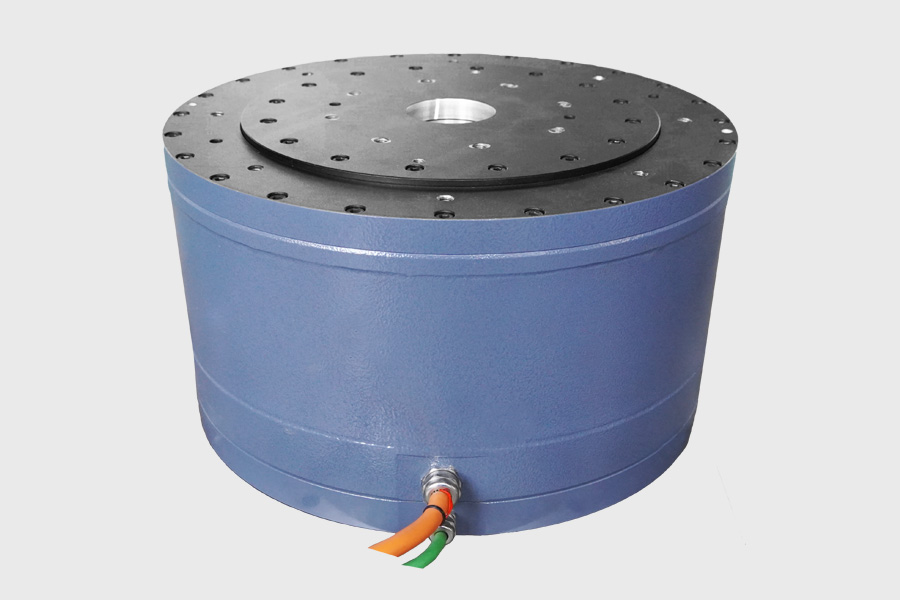

Direct Drive Rotary Stage HD385
The DMT direct drive rotary stage HD385 has a hollow design, a working table diameter of 282, and a protection level of IP40. It has two heights to choose from. It has advantages such as high cost performance, stable and reliable performance, high repeat positioning accuracy, and low maintenance costs.
Currently, HD385 has been widely used in large workpiece manufacturing lines such as new energy vehicle manufacturing, new energy vehicle power battery manufacturing, and photovoltaic silicon wafer manufacturing.
Feature Description:
With the widely known advantages of easy maintenance and high stability of direct-drive rotary tables, more and more enterprises are seeking to use direct-drive rotary stages for efficient processing, replacing the traditional roller cam or belt driven production line rotary tables.
DMT HD385 is a rotary table without accessory transmission system, with high accuracy and excellent stability.
1. High load
The direct drive rotary stage HD385 has a load of 15000 N, making it suitable for use as a rotary stage for processing medium and large workpieces.
2. High accuracy
Compared to traditional gear, worm, and belt driven rotary worktables, the HD385 has an accuracy of ± 15 angular seconds and a repetitive positioning accuracy of ± 5 angular seconds, providing a remote traditional rotary worktable solution.
3. High power density and space saving
No other transmission components are required to occupy space, and the direct drive rotary stage has high space utilization efficiency.
4. No wear and low maintenance cost
There is no transmission, so there are no vulnerable and consumable parts. Maintenance is simple, work is stable, and accuracy can be kept stable for a long time. Compared to traditional rotary stages, it saves vulnerable parts and efficiency loss costs during maintenance.
